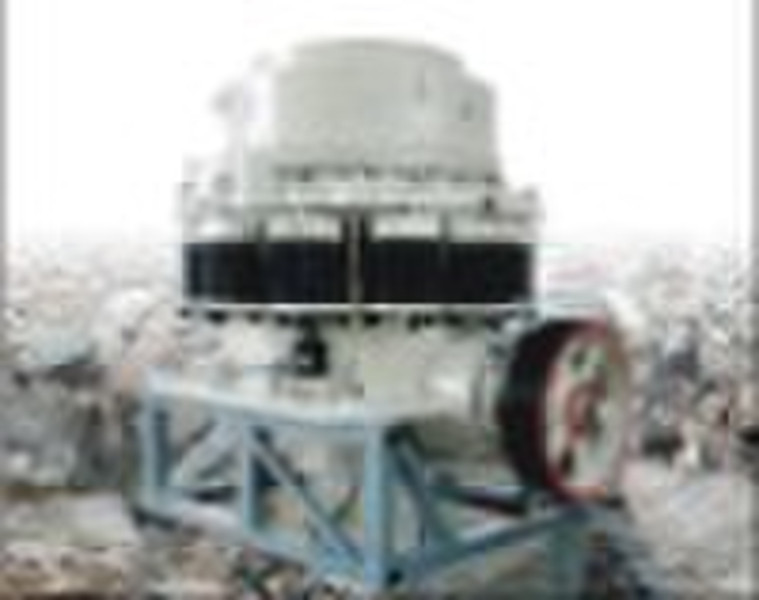

PYB/PYZ/PYD Spring Cone Crusher

PYB/PYZ/PYD Spring Cone Crusher Advantagesandcharacteristics 1.Highproductivity,highquality 2.Lessmachinestoptime 3.Easymaintenance 4.Uniquecrushingabilityinprimary,secondary,andtertiarycrushing Briefintroduction ConeCrushergettoworldadvancedlevel,whichiswidelyappliedinmetallugical,construction,roadbuilding,chemicalandphosphaticindustry.Itissuitableforhardandmid-mid-hardrocksandores,suchasironores,copperores,limestone,quartz,granite,gritstone,etc. Wecombinehigh-efficiencycrushingchamberwithhighcrushingfrequency,inordertoincreasecapacity.Furthermore,finishedproductsarecubic-shapedandlessneedle-flakematerials,owingtothetechnologyoflaminatedcrushing. Theproducthasmanyadvantagesasfollows,highproductivity;highquality;lessmachinestoptime;easymaintenanceandlowcost;uniquecrushingabilityinprimary.Innormalsituations,theoperationrateoftroublefreeismorethan95%. Overalldimension Model A(size) B(size) C(size) D(size) E(size) PYB/PYZ/PYD900 458 2358 1135 1250 1690 PYB/PYZ/PYD1200 650 2550 1670 1645 2815 PYB/PYZ/PYD1750 845 3505 2120 2255 3585 PYB/PYZ/PYD2200 950 4852 3025 2700 4080 Conecrusherhasfeaturesofsimplestructure,easy,maintenance,convenientforadjustingthedischargeopening,inparticular,moreeasytochangethequick-wearparts,shortenthestop-workingtime. Model Thediameteroftheconicalchamber(mm) Max.feedsize(mm) Adjustablerangeofdischargeopening(mm) Capacity(t/h) Electricmotorpower(kw) Swingfrequencyofdrive-shaft(r/min) Weight(t) Overalldimension(mm) PYB900 900 115 12-50 50-90 55 333 11.2 2692*1640*2350 PYZ900 900 60 5-20 20-65 55 333 11.2 2692*1640*2350 PYD900 900 50 3-13 15-50 55 333 11.3 2692*1640*2350 PYB1200 1750 145 20-50 110-168 110 300 24.7 2790*1878*2844 PYZ1200 1750 100 8-25 42-135 110 300 25 2790*1878*2844 PYD1200 1750 50 3-15 18-105 110 300 25.3 2790*1878*2844 PYB1750 1750 215 25-60 280-480 160 245 50 3910*2894*3809 PYZ1750 1750 185 10-30 115-320 160 245 50 3910*2894*3809 PYD1750 1750 85 5-15 75-230 160 245 50 3910*2894*3809 PYB2200 2200 300 30-60 590-1000 280 220 80 6440*2900*5057 PYD2200 2200 100 5-15 120-340 280 220 81.4 6440*2900*5057 Notes:capacityostotaltonsperhourpassingthroughcrusheratopencircuitwhendensityoffeedingis1.6*10.3kg/m3.Capacitiesarerelativetophysicalpropertyandtypeoffeedingsizeandcompose.ThecapacitychartsisforproperlyusingPYZconecrusherandgettoitscapacity.Crusheriscomponentofminingproductionline,soit'scharacterresultfromfeeder,conveyor,screen.Electricmotor,drivepart,srugebin,noticingfollowcanenhancecapacityandcharacter. 1.crushingmaterialforappropriatechamber 2.Feedrateiscontroled 3.Feedisaveragedistributesat360crushingchamber 4.automationcontrol 5.Capacityofdischargeconveyorismorethanconecrusher 6.Userightscalpingandcontrolcircuitscreens
